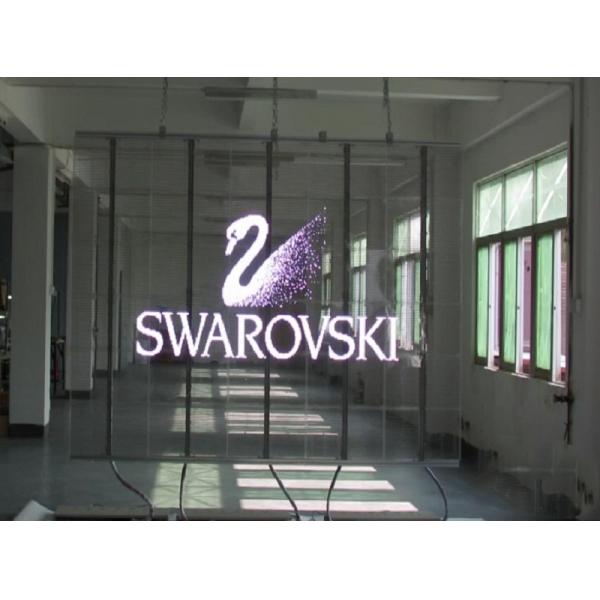

P7.5-8mm Indoor Transparent LED Display Full Color High Transparency for Fixed
Clean and See Glass
Excellent Viewing Angle
Hidden Cable Appearance
Easy to Install and Dismantle
Parameter
| | BG-7.5-8 | BG-10 | BG-16 | BG-20 |
| Physical Pitch | 7.5 mm | 10 mm | 16 mm | 2 mm |
| Pixel Configuration | SMD3528 | SMD528 | SMD3528 | SMD3528 |
| Pixel Density | 17,777 pixels/m² | 10,000 pixels/m² | 3,906 pixels/m² | 2,500 pixels/m² |
| Module Dimensions (W × H) (mm) | 480 × 320 | 480 × 320 | 480 × 320 | 480 × 320 |
| Panel Dimensions (mm) | 1920 × 640 | 1920 × 640 | 1920 × 640 | 1920 × 640 |
| NO .of Modules Per Panel (W × H) | 4 × 2 | 4 × 2 | 4 × 2 | 4 × 2 |
| Physical Resolution of Module (W × H) | 64 × 42 | 48 × 32 | 30 × 20 | 24 × 16 |
| Physical Resolution of Panel (W × H) | 256 × 80 | 192 × 64 | 120 × 40 | 80 × 32 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 9 KG/m² | 8 KG/m² | 7.2 KG/m² | 6.5 KG/m² |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 204 W/m² | 195 W/m² | 218 W/m² | 218 W/m² |
| Max Power Consumption | 670 W/m² | 650 W/m² | 650 W/m² | 650 W/m² |
| Operating Temp/Humidity | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | 5,500 - 6,000nits | 5,500 - 6,000nits | 5,500 - 6,000nits | 5,500 - 6,000nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| IP Rating (Front/Rear) | IP 30 | IP 30 | IP 30 | IP 30 |
| Servicing | Rear | Rear | Rear | Rear |
| Certification | CCC, CE, ETL, FCC | CCC, CE, ETL, FCC | CCC, CE, ETL, FCC | CCC, CE, ETL, FCC |
Future
Slim, Light Weight and Quiet
35mm-45mm thickness
14kg per square meter
Available to attach onto glass wall directly
High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Special Emitting Angle
Lighting from tube side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD Technology, avoid to be knocked off during transportation and installation
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
